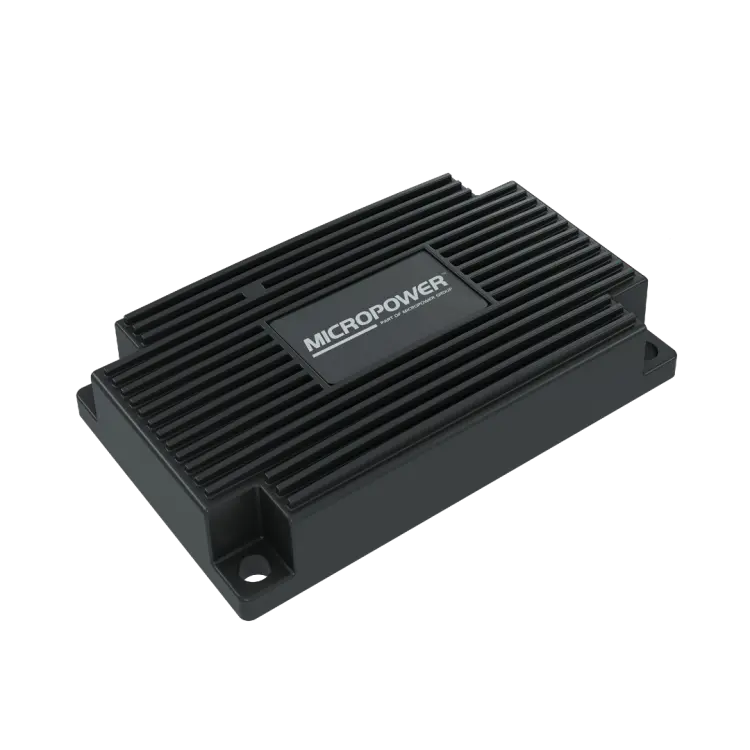

Micropower | DC/DC Converter MIL 24-12, MPN

DC-DC Converter Military 24 V to 12 V (IP67)

This military-grade DC-DC converter from Micropower Group is engineered to step down a 24 V DC input to a stable 12 V DC output with high efficiency and rugged protection. Designed for defence, industrial, and mission-critical applications, it features advanced switch-mode technology and a sealed IP67 enclosure for reliable operation in harsh environments.

Key Specifications

• Input Voltage: 18–36 V DC
• Output Voltage: 12.5 V DC nominal
• Output Power: ~400 W (≈30 A)
• Efficiency: >95 % typical
• Isolation: Galvanically isolated
• Ingress Protection: IP67 sealed enclosure
• Dimensions: ~150 × 93 × 31 mm
• Weight: ~0.82 kg

Main Features

• Military-Grade Design: Built to meet rugged requirements for defence and demanding environments.
• Wide Input Compatibility: Works with 18–36 V DC systems for flexible power sources.
• High Efficiency: >95 % efficient switch-mode design for minimal heat and energy loss.
• Galvanic Isolation: Electrical separation between input and output for safety and noise immunity.
• IP67 Protection: Fully sealed housing protects against dust, water ingress and outdoor conditions.
• Rugged & Compact: Durable construction suited for vehicles, field equipment, and industrial systems.

Protection Functions

• Reverse polarity protection safeguards against incorrect power connections.
• Short-circuit protection provides reliability under fault conditions.
• Overload protection helps prevent damage from excessive load.

Typical Applications

• Military and defence power systems
• Industrial automation and control
• Battery-powered vehicles and mobile platforms
• Telecommunication power units
• Rugged equipment and field installations

Installation & Integration

• Pre-wired cable connections for straightforward installation.
• IP67 sealed housing for reliable outdoor and harsh environment use.
• Suitable for panel, vehicle, and cabinet integration.
