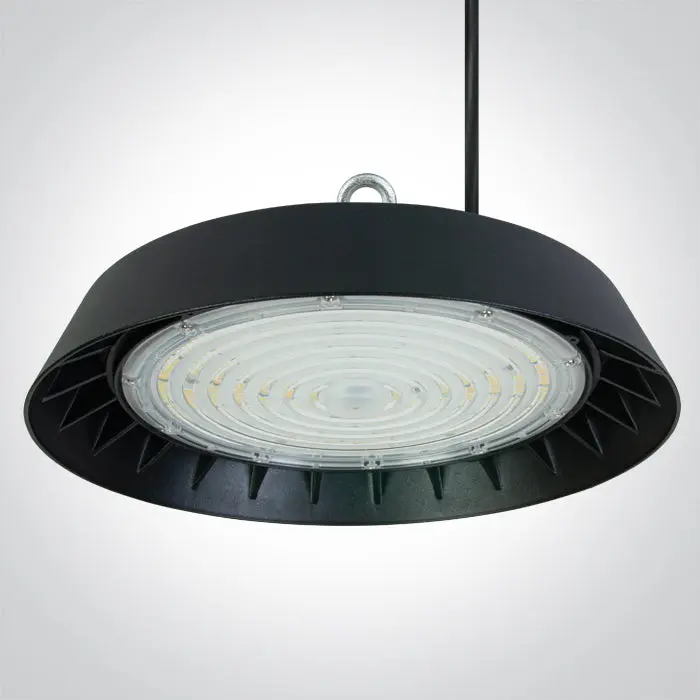

The ONE Light 63150N/V is a pendant light designed for suspended ceiling installation and suitable for indoor / outdoor applications. CCT Variable and power adjustable 90W/120W/150W SMD LED Industrial High Bay, IP65. Supplied with 3-step dimmable LED driver. Complies with standard EN60598-1 and any other specific standards.
Key Features
- Light Output: 22500lm (150W)
- Colour Temperature: 4000K-4700K-5700K
- CRI: 80
- IP Rating: IP65
- Dimmable: Yes
- Material: Aluminium
- Warranty: 5 Years
Technical Specifications
| Brand | ONE Light |
|---|---|
| Manufacturer Part Number | 63150N/V |
| Product Type | Pendant Light |
| Mounting | Suspended Ceiling |
| Environment | Indoor / Outdoor |
| Power | 90W/120W/150W |
| Input Voltage | 220-240V |
| Light Output | 22500lm (150W) |
| Colour Temperature | 4000K-4700K-5700K |
| CRI | 80 |
| Beam Angle | 90° |
| IP Rating | IP65 |
| Dimmable | Yes |
| Material | Aluminium |
| Diffuser Material | PC |
| Colour | Black |
| Dimensions | 169mm |
| Diameter | 310mm |
| Safety Class | I |
| Power Factor | 0,9 |
| Warranty | 5 Years |
| Average Lifetime | 36000Hrs L70B50 |
| Barcode | 5291889078357 |
| Customs Tariff Code | 9405413990 |
Downloads & Technical Documents
- Product Datasheet
- Installation Manual
- Declaration / Certificate
- IES Photometric File
- Product Diagram
- Manufacturer Product Page
Product Information
Technical values and document links are based on the manufacturer’s product data. Always verify installation requirements and applicable electrical standards before installation.
